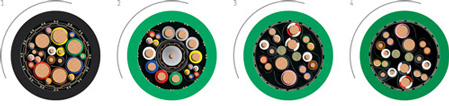

1 / Art.No. 200.194 / hradil special camera cable suitable for
semi-Ex und Ex-units from JT-elektronik
∅ 10,2 mm / 6 x 1,5 mm² + 15 x 0,14 mm²
2 / Art.No. 200.198 / hradil special camera cable suitable for
200m system (also a milling system) from JT-elektronik
∅ 14,2 mm / 8 x 1,0 mm² + 4 x 0,22 mm² + 5 x 0,14 mm² + coax
3 / Art.No. 200.202 / hradil special camera cable suitable for
Micro-Rota from JT-elektronik
∅ 7,5 mm / 2 x 0,5 mm² + 2 x 0,38 mm² + 8 x 0,11 mm² + 4 x 0,08 mm²
4 / Art.No. 200.473 / hradil special camera cable suitable for
Satellite system with the Lindauer Schere from JT-elektronik
∅ 8,6 mm / 6 x 0,08 mm² + 8 x 0,1 mm² + 2 x 0,35 mm² + 2 x 0,5 mm
We can also supply all these cables
fitted with the appropriate plugs on request.
