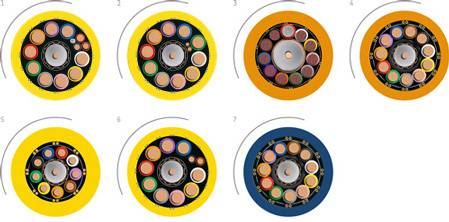

1 / Art.No. 200.470 / hradil special camera cable suitable for
PANORAMO modular system (ARGUS 5) from IBAK
∅ 10 mm / 9 x 0,6 mm² + 1 x 2 x 0,095 mm² + 1 x 0,15 mm² + optical fibres + coax
2 / Art.No. 200.469 / hradil special camera cable suitable for
modular systems (ARGUS 5, ORPHEUS) from IBAK
∅ 10 mm / 9 x 0,6 mm² + 1 x 2 x 0,095 mm² + 1 x 0,15 mm² + coax
3 / Art.No. 200.248 / hradil special camera cable suitable for
PANORAMO from IBAK
∅ 9,5 mm / 10 x 0,75 mm² + LWL + coax
4 / Art.No. 200.191 / hradil special camera cable suitable for
large-scale TV units (ARGUS 4, SIRIUS) from IBAK
∅ 9,5 mm / 11 x 0,75 mm² + coax
5 / Art.No. 200.207 / hradil special camera cable suitable for
pan and rotate systems (HSP, LISY) from IBAK
∅ 6,3 mm / 9 x 0,15 mm² + coax
6 / Art.No. 200.201 / hradil special camera cable suitable for
TV MIDI systems (KT/KW 180, KW 305) from IBAK
∅ 7,4 mm / 9 x 0,5 mm² + 2 x 0,08 mm² + coax
7 / Art.No. 200.228 / hradil special camera cable suitable for
large-scale TV units (ARGUS 3) from IBAK
∅ 11,2 mm / 10 x 1,0 mm² + coax
We can also supply all these cables
fitted with the appropriate plugs on request.
